User Guide

# System Login

Storeberry's cloud POS sales system is suitable for different types of mobile devices, so that you can easily operate on computers, tablets, and smartphones anytime, anywhere.

Web Version：

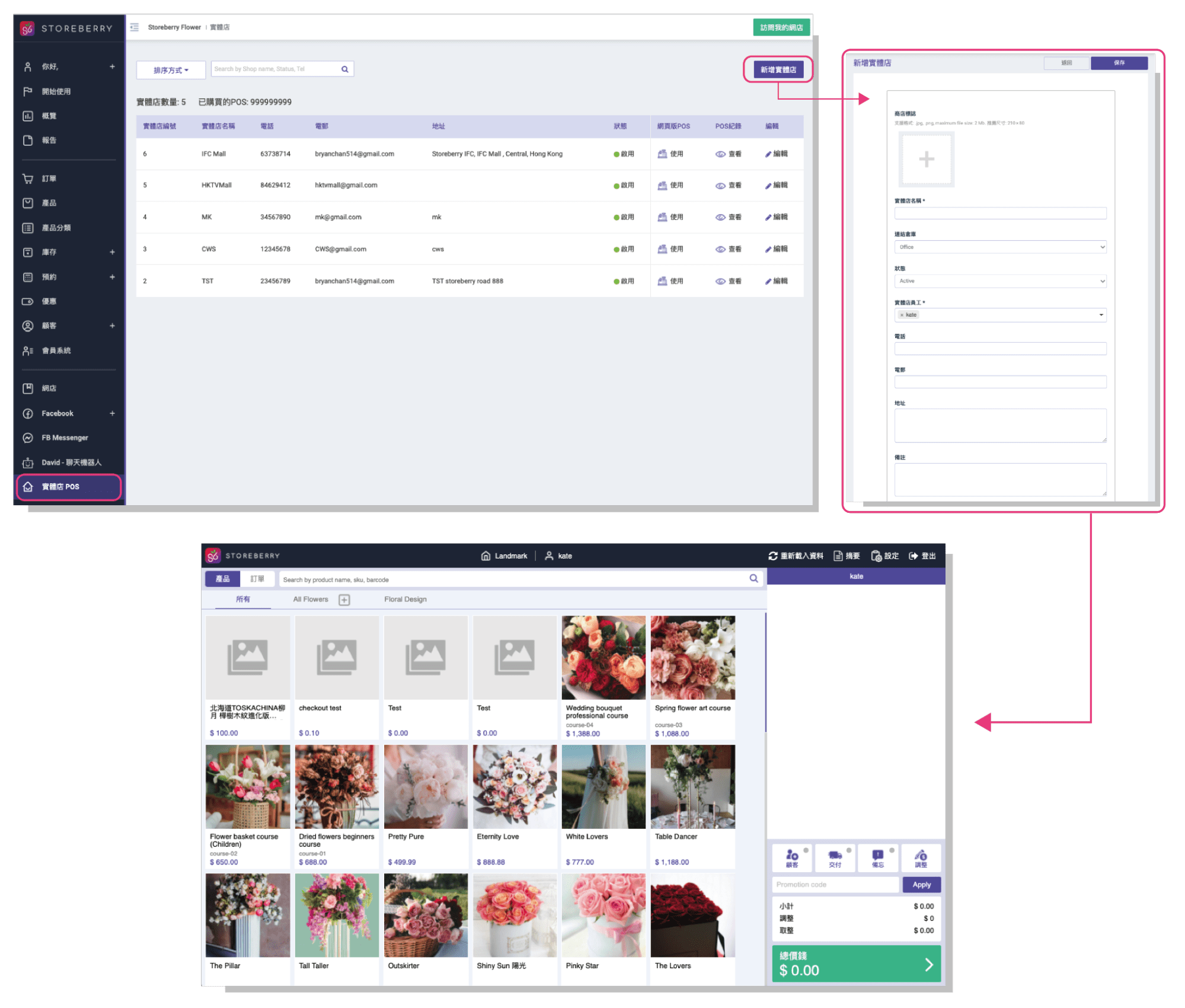

Storeberry users who use the web version can go to the Storeberry Admin Panel 「Physical Stores POS」 , then click 「Add Store」 at the top right of the page and follow the instructions to fill in the store info, such as store logo, name, etc. Click 「Save」 to enter the POS interface of the physical store.

iPad App Version：

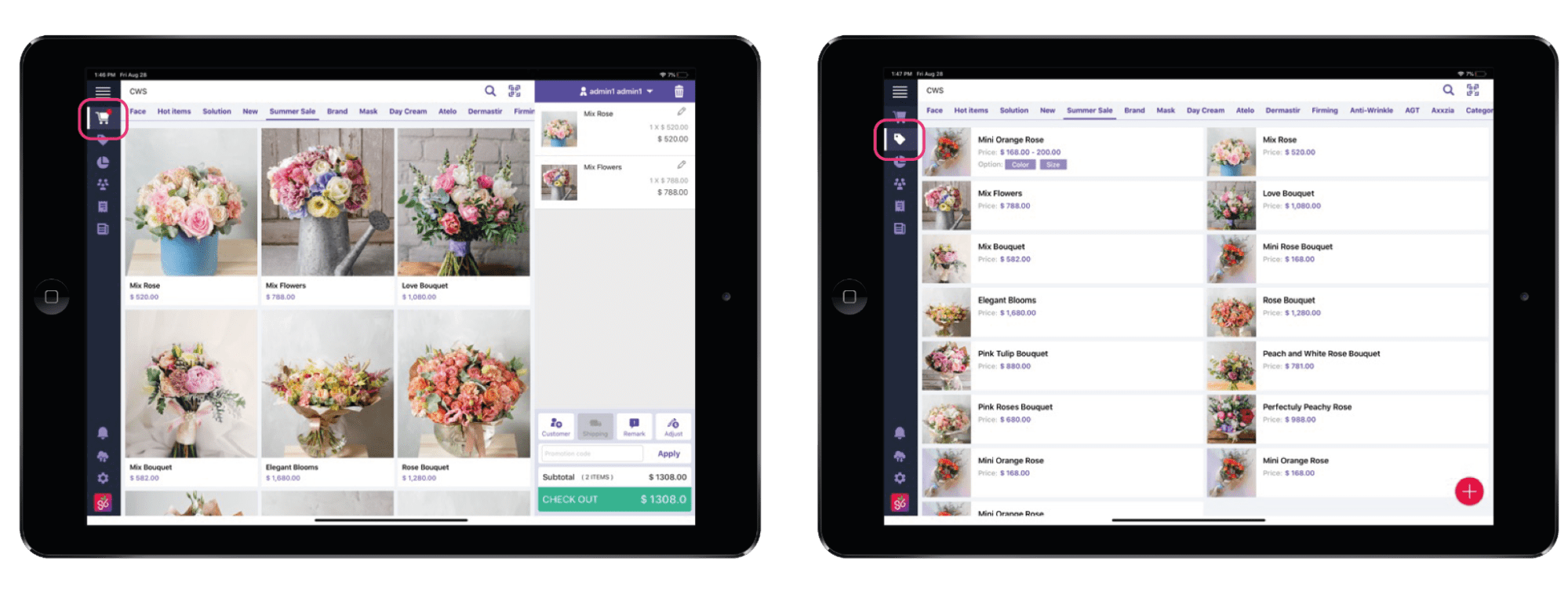

Storeberry users who use iPad can download the "Storeberry for iPad" app from the App Store , and log in to your account to enter the Storeberry POS interface.

iPhone App Version：

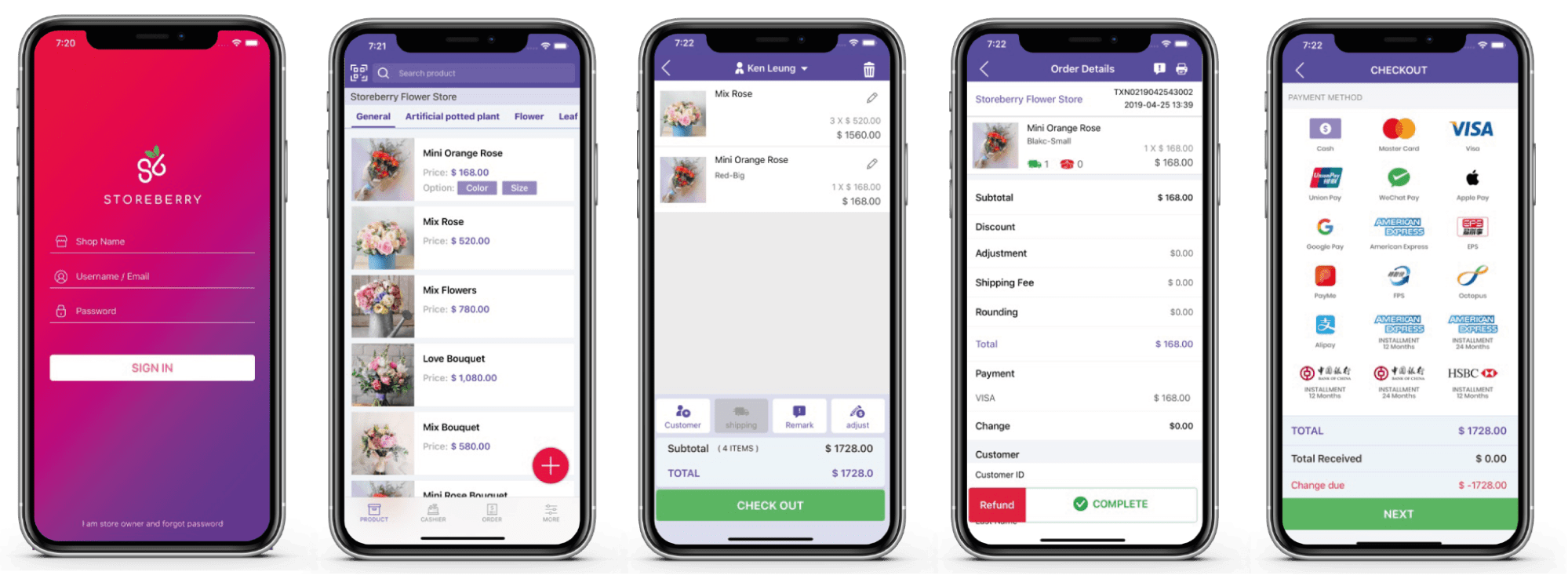

Storeberry users who use iPhone can download the “Storeberry” app from the App Store and log in to your account to enter the Storeberry POS interface.

# Hardware Kits Setup: Printer/ Scanner/ Credit Card Reader

POS Printer (MCP31L) Setup:

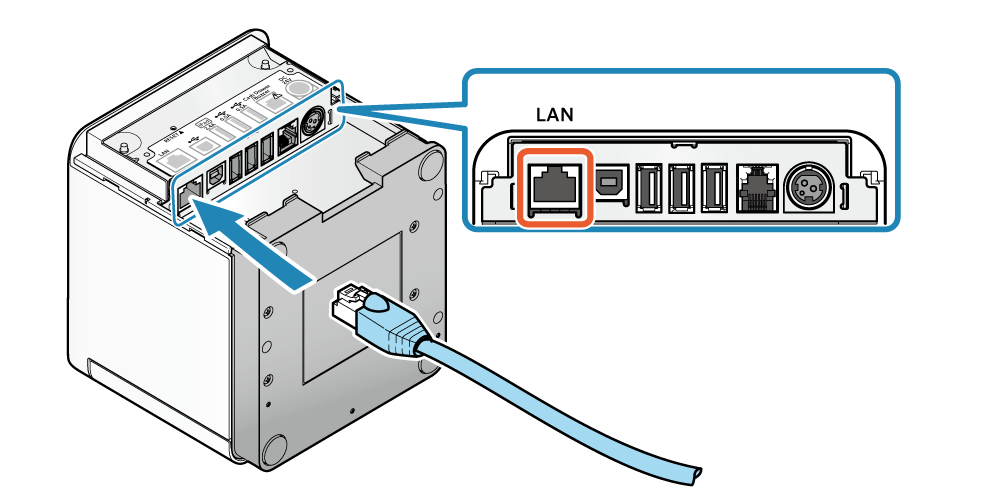

1）Connect the LAN cable to the POS printer.

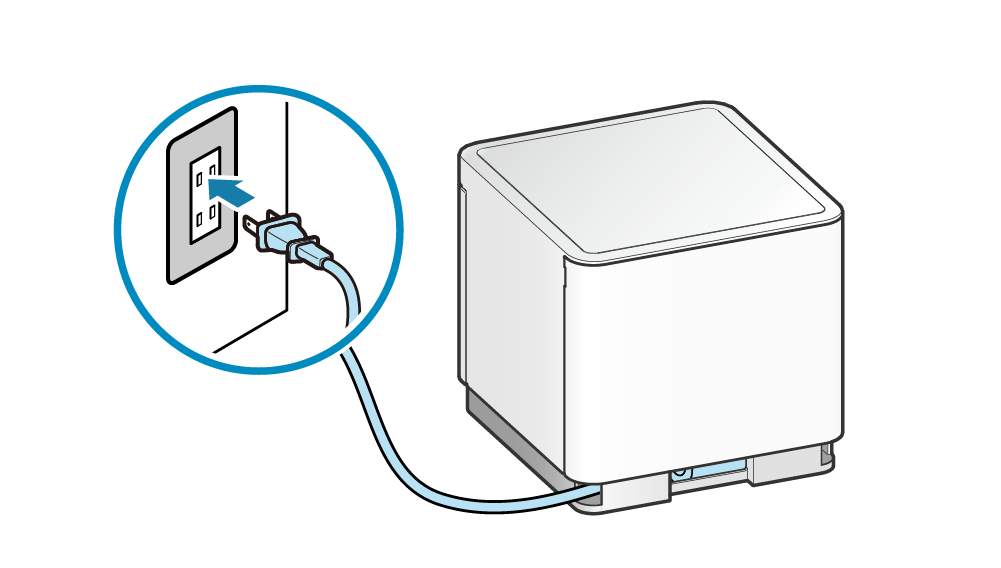

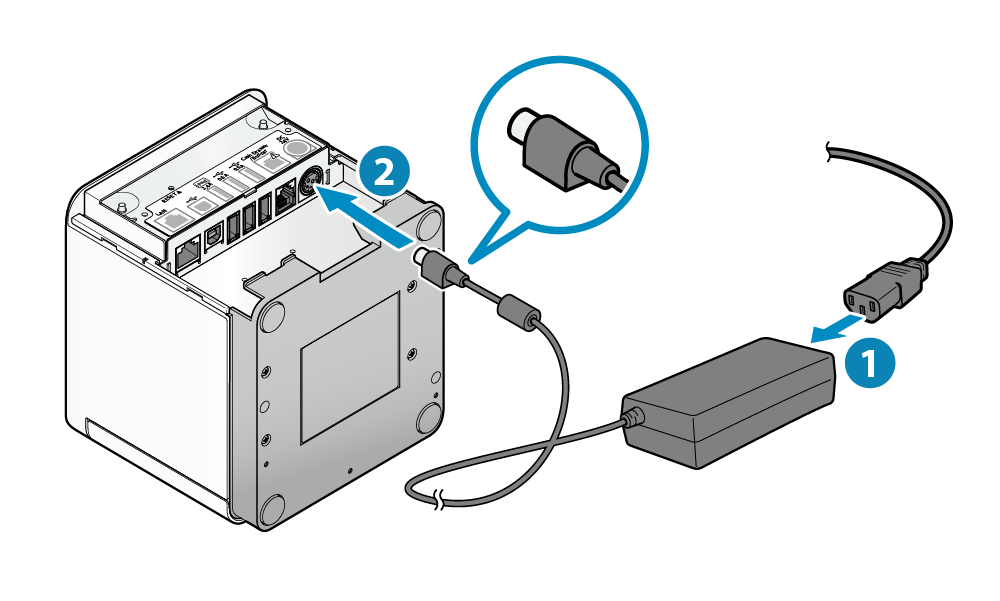

2）Connect to the electric power and then turn on the printer. Please ensure that the AC adapter is properly connected to the printer before connected to the electric power.

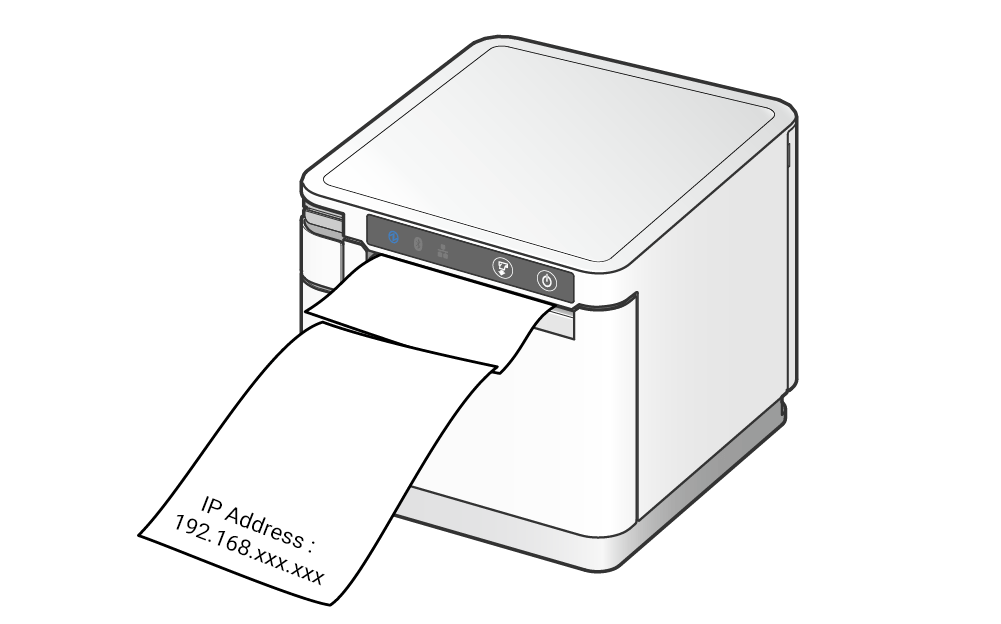

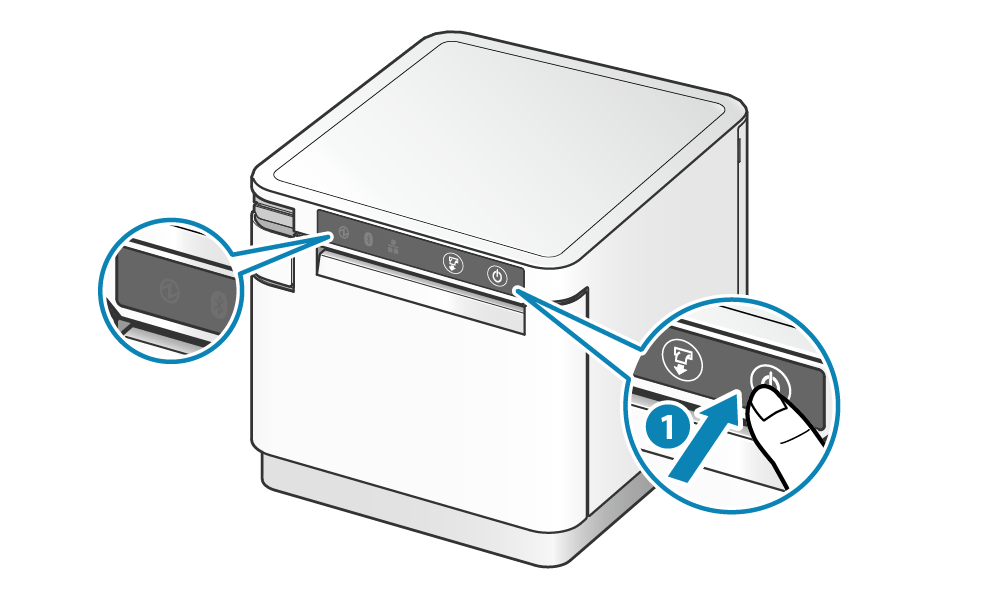

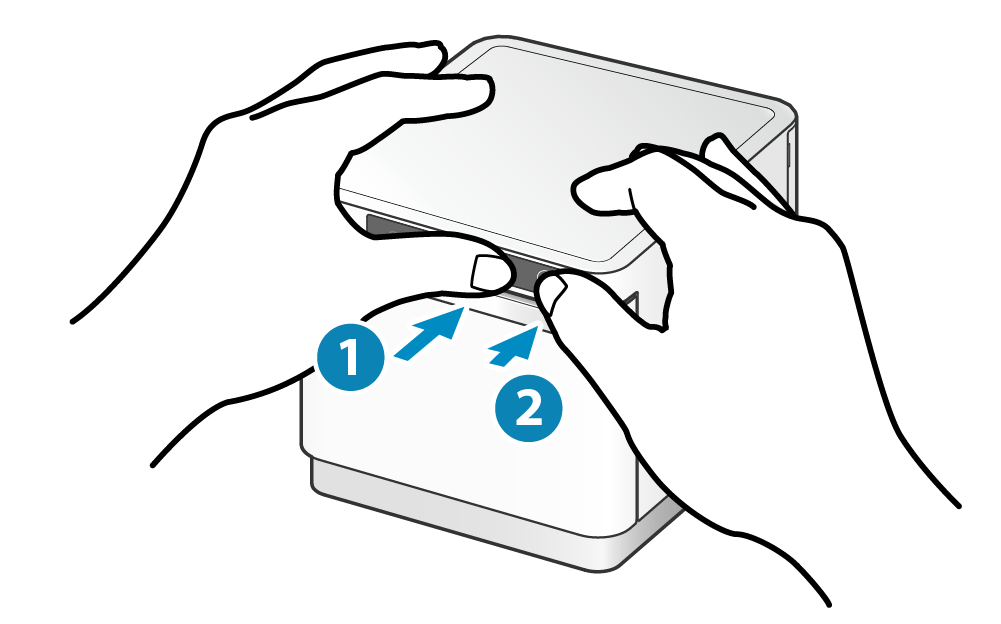

3）Turn on the printer and insert paper, and then press the buttons on the printer according to the picture to print out the printer information with IP Address.

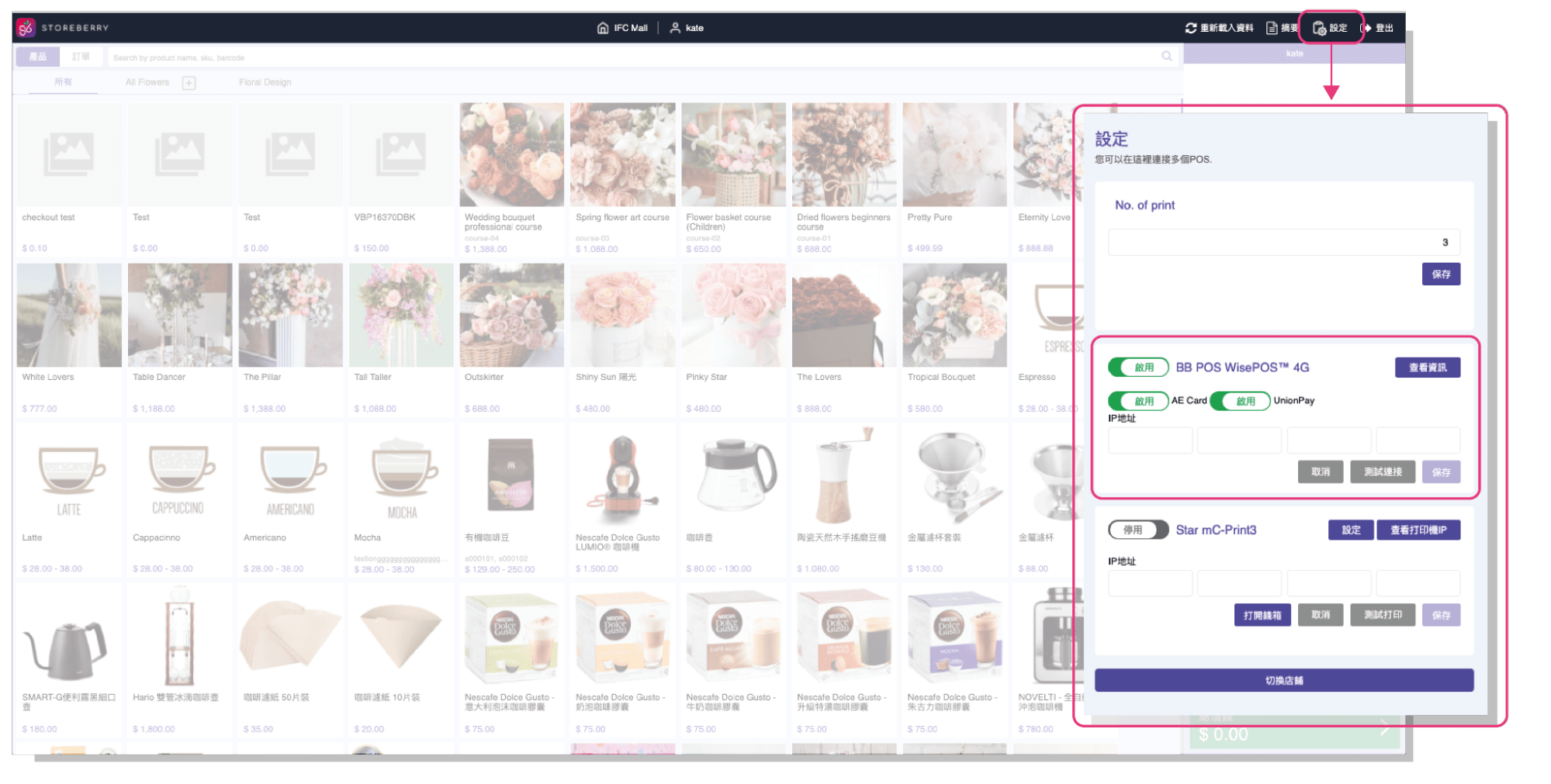

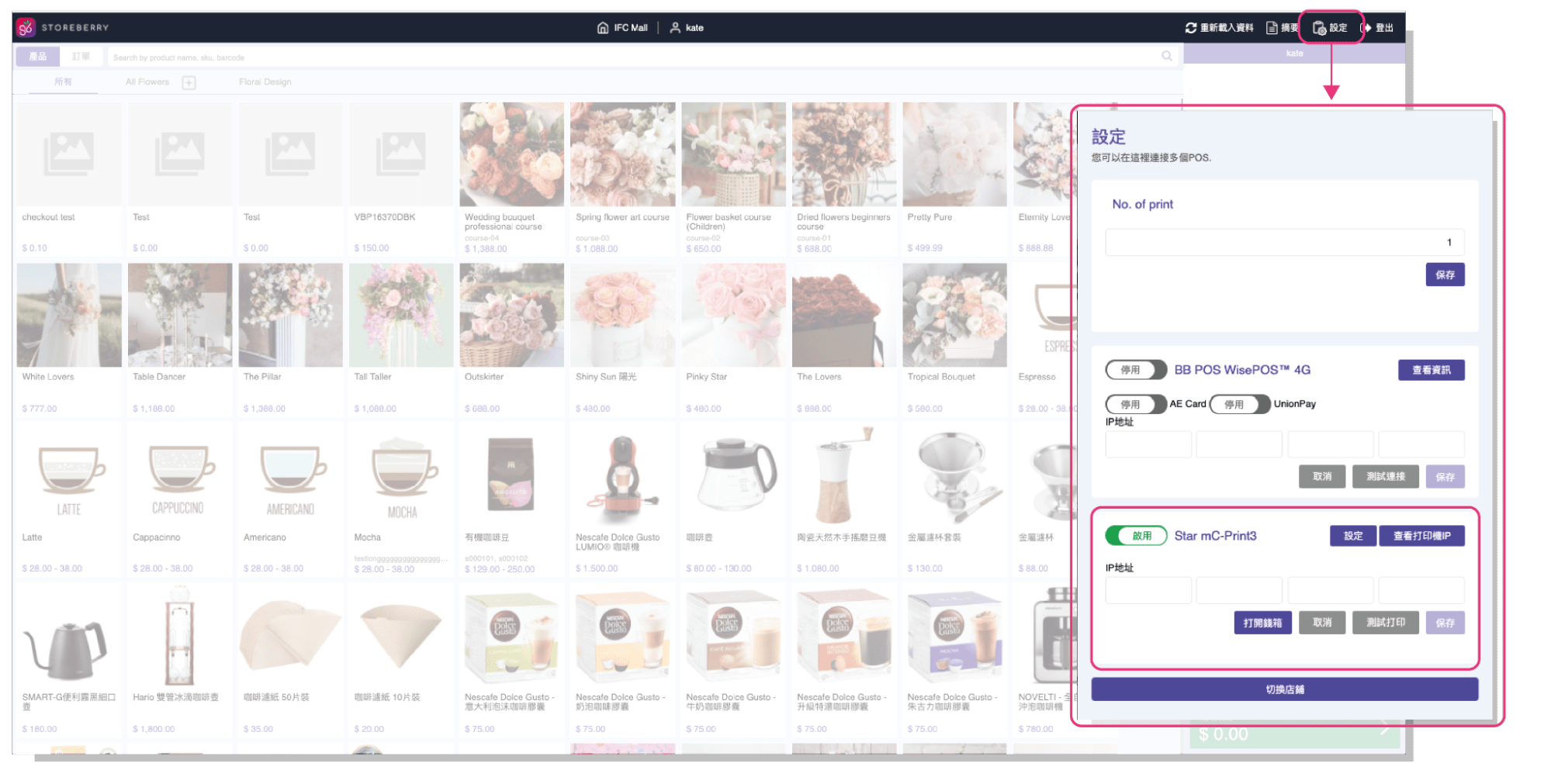

4）Back to the Storeberry Web POS interface and click “Setting” in the top right corner. Enable "Star mC-Print3", and enter the IP address in the column below. Then click “Test Print” and press “Save” after the printer successfully prints a note with "Test Print".

Import BBPOS certificate (Firefox Only)

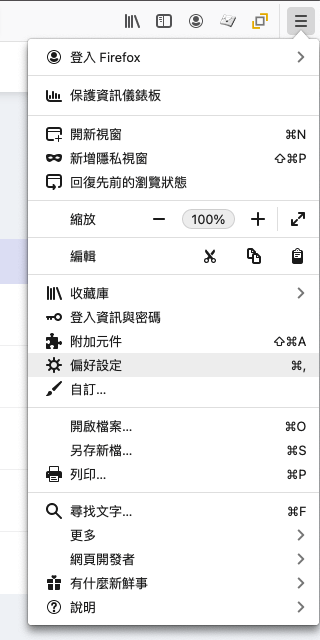

1）On top right click the menu and click the preferences

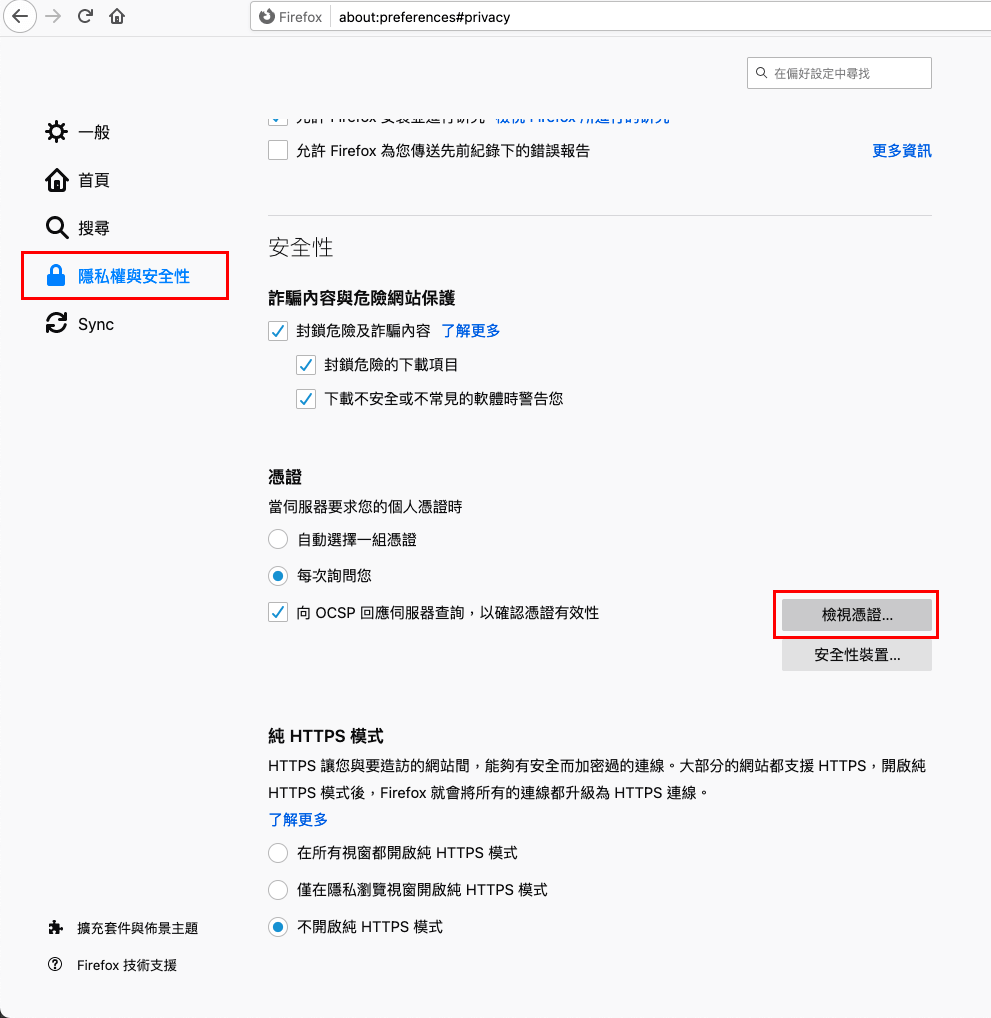

2) Click privacy & Security, and then scroll to bottom click View certificates

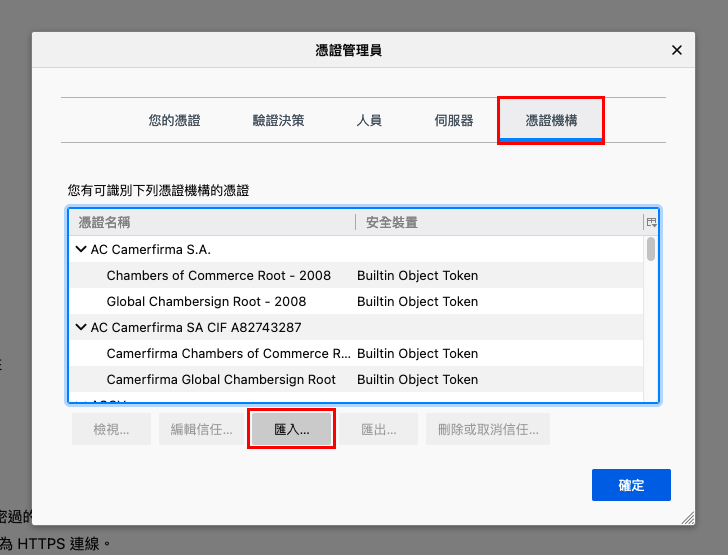

3）Click authorities,and import the BBPOS certificate

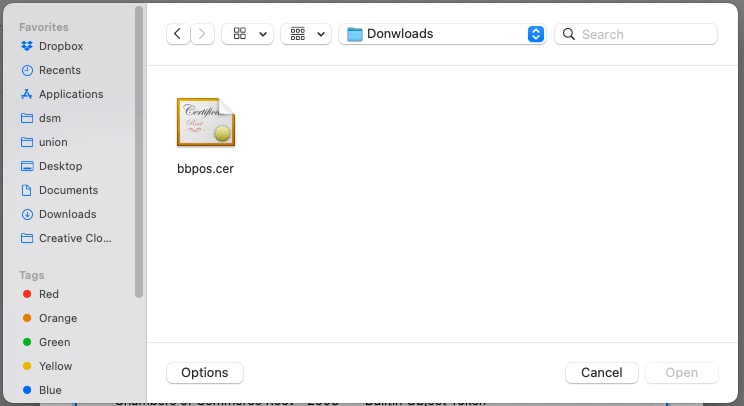

4）Select the BBPOS certificate ( Download Here )

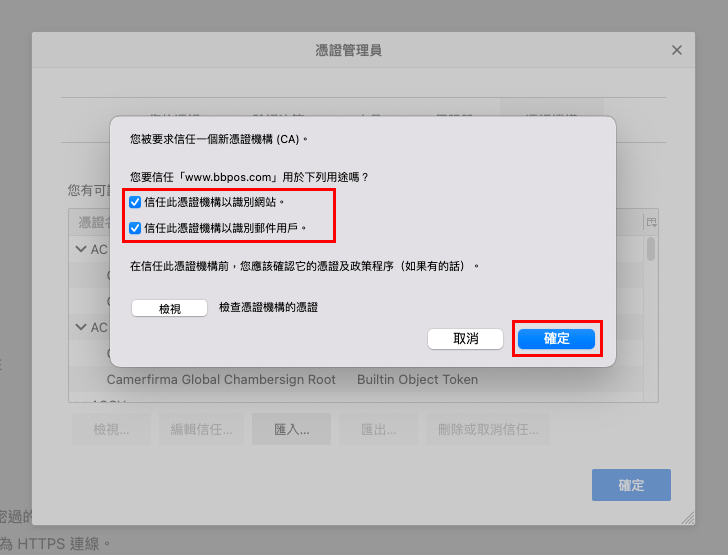

5）Trust BBPOS all permission and click OK

Barcode Scanner (NETUM C750) Setup:

NETUM C750 barcode scanner provides a total of 2 wireless connection modes, including "2.4G radio frequency mode" and "Bluetooth mode".

If you choose to connect your barcode scanner in "2.4G RF Mode":

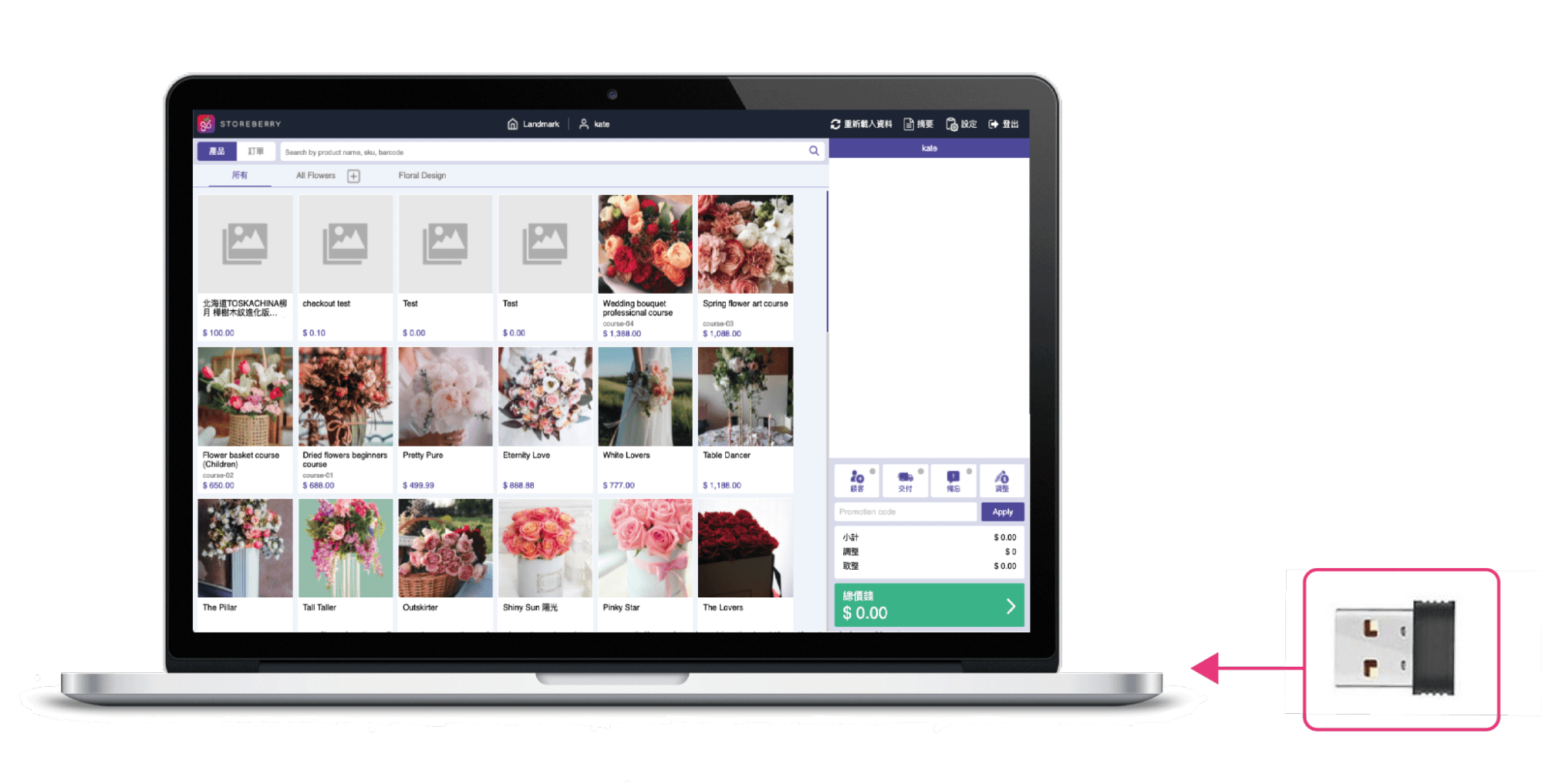

1）Please plug in the 2.4G USB to your computer first.

2）Use the barcode scanner to scan the following "2.4G RF Mode" barcode to enter the pairing mode, and the barcode scanner will automatically complete the pairing.

If you choose to connect your barcode scanner in "Bluetooth Mode":

1）Use the barcode scanner to scan the "Bluetooth Mode" barcode, the barcode scanner will enter pairing mode, and the blue LED will flash.

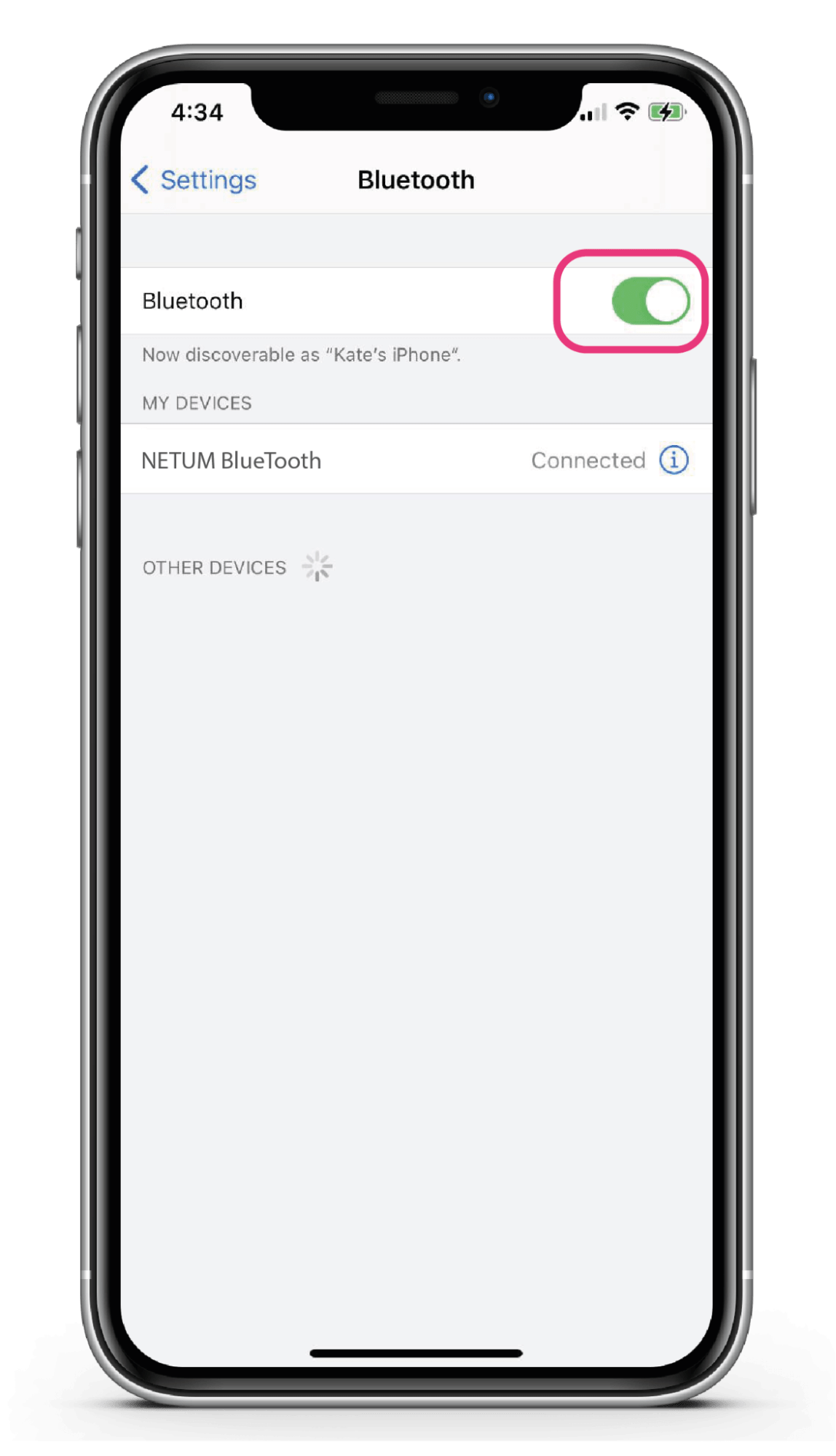

2）Turn on your mobile device and go to the Bluetooth setting, turn on the Bluetooth and click "C barcode scanner" to pair. After successfully pairing, there will be a voice prompt, and the blue LED light will keep on.

BBPOS Machine Setup (BB POS WisePOS™ 4G):

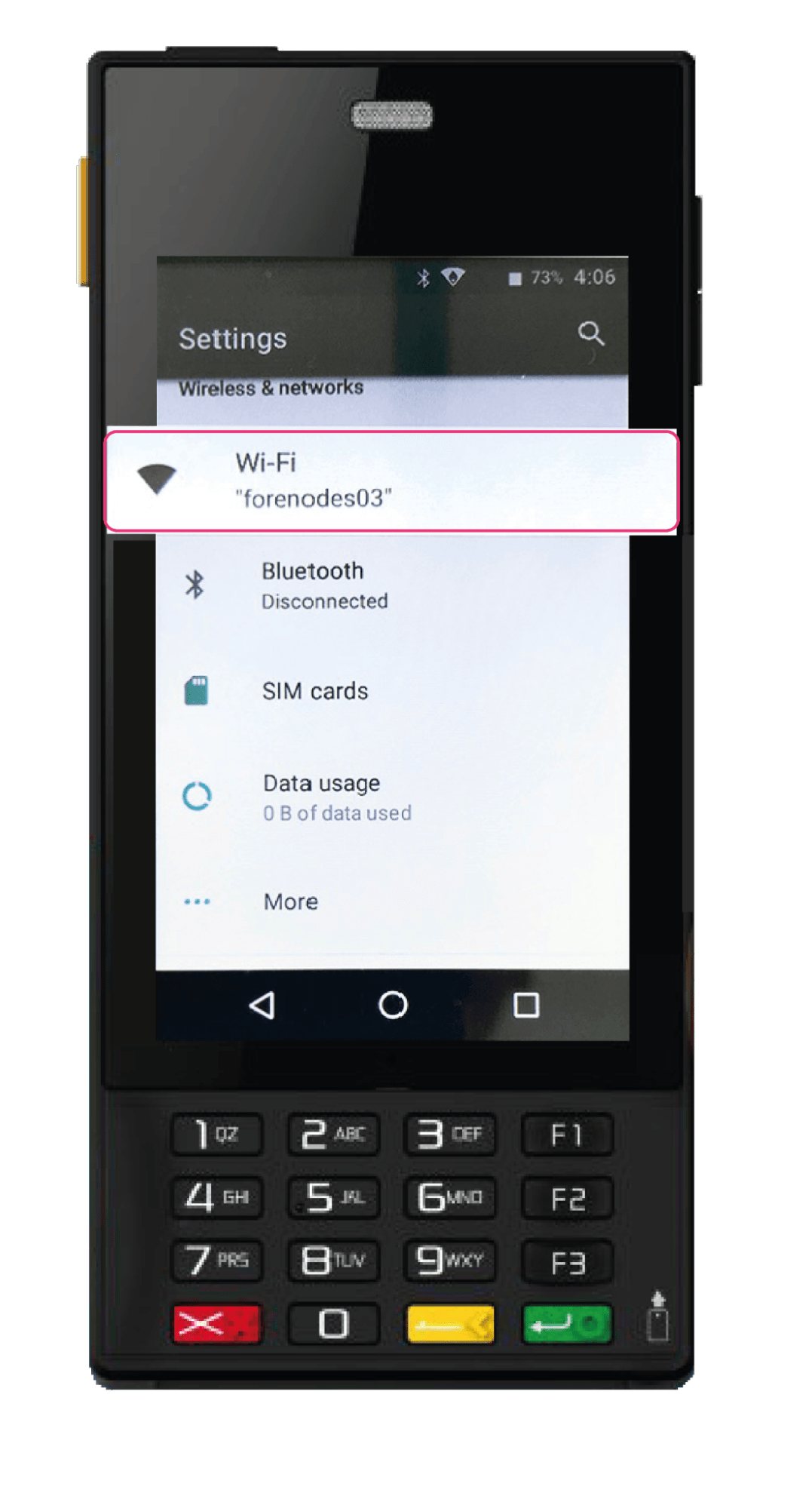

1) Connect the BBPOS machine to the same wireless local area network (Wi-Fi) as the printer.

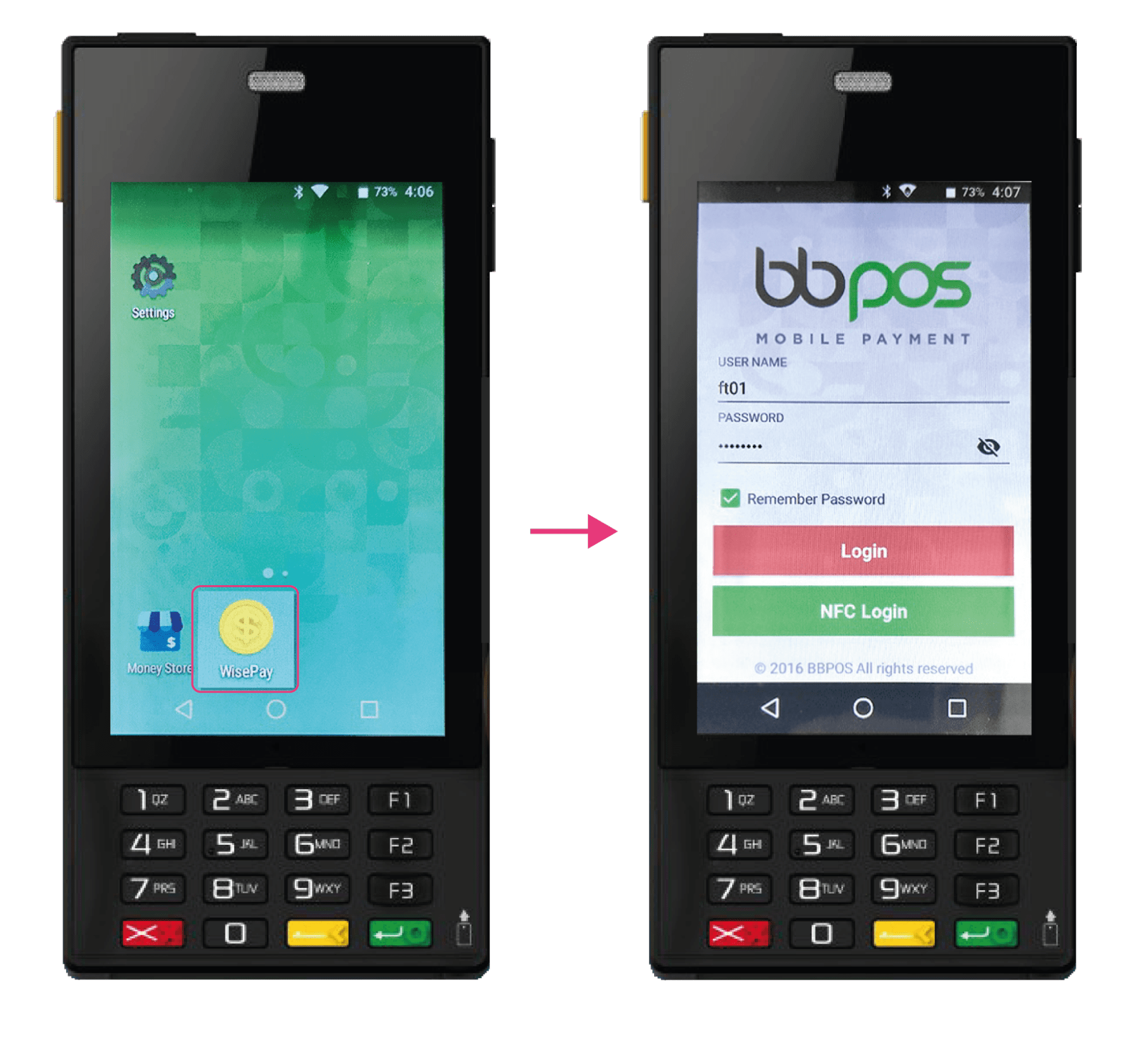

2）Click to open the "WisePay" application, and then log in to your account.

3）Click the icon on the upper right to get the IP Address of the BBPOS machine.

4）Back to the Storeberry Web POS interface and click 「Settings」 in the upper right corner. Enable "BB POS WisePOS™ 4G" , and enter the IP Address on the BBPOS machine in the column below. Click 「Test Connection」 , and after the browser successfully pops up a note with "Success" , click 「Save」 to save the settings.

# POS General Setting

Barcode Scanner Setting

How to disconnect the bluetooth:

1）Turn on your mobile device and go to the Bluetooth setting, and click "Forget this device" at the location of the connected barcode scanner.

2）Scan the "Disconnect Bluetooth connection" barcode to disconnect. The barcode scanner will return to pairing mode, and it will be indicated by a flashing blue LED.

Scan Mode Setting：

1）Key trigger mode (default): Scan the following barcode to set.

2）Continuous scan mode: scan the following bar code to set.

Scanner Sleep Mode Setting:

The barcode scanner is preset to automatically enter the dormant state after 1 minute of inactivity. If the merchant needs to change the setting, it can reset it according to the following steps:

1）Please scan the "Disable Sleep Mode" barcode once.

2）Scan the barcodes of the following different sleep modes as needed, such as "Sleep after 10 minutes of inactivity", "Sleep after 30 minutes of inactivity" and "Shutdown".

Volume Setting:

The volume of the prompt tone of the barcode scanner is preset to high volume. If you want to change it, the following different volume representative barcodes can be scanned as needed:

Battery Check:

If you want to check the battery level of the barcode scanner, you can scan the following barcode:

Reset All Settings：

If you need to reset the barcode scanner to the original factory settings, please scan the following 4 barcodes in order:

How to Set Up/ Print the Barcode and QR Code For Products:

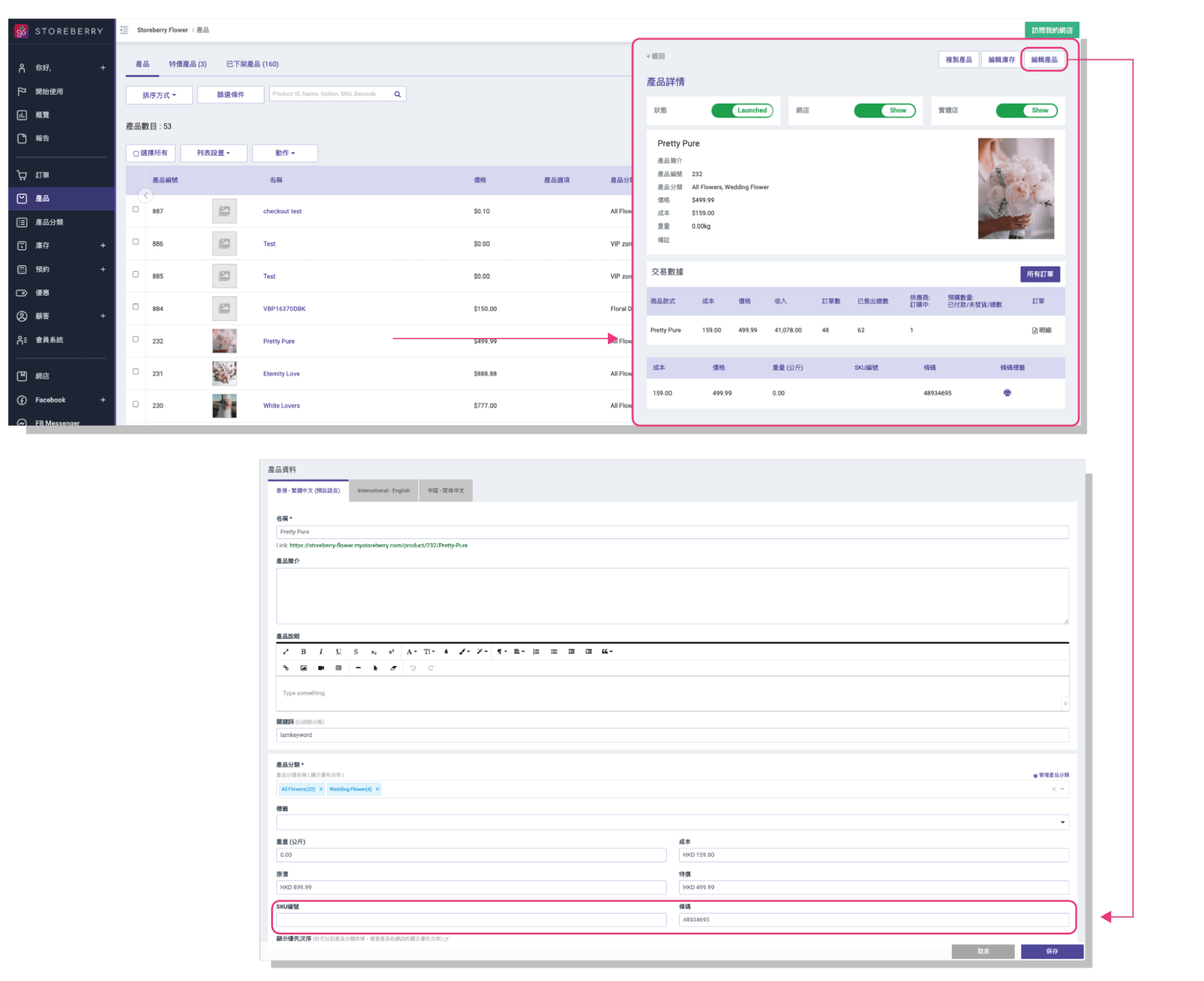

1） Before printing the barcode/QR code of the product, please ensure that you have entered the barcode number (used by the barcode) or SKU (used by the QR code) for your product You can go to Storeberry Admin Panel 「Products」 and click on the product you want to print a barcode / QR code, and click 「Edit Product」 to add a barcode number / QR code SKU.

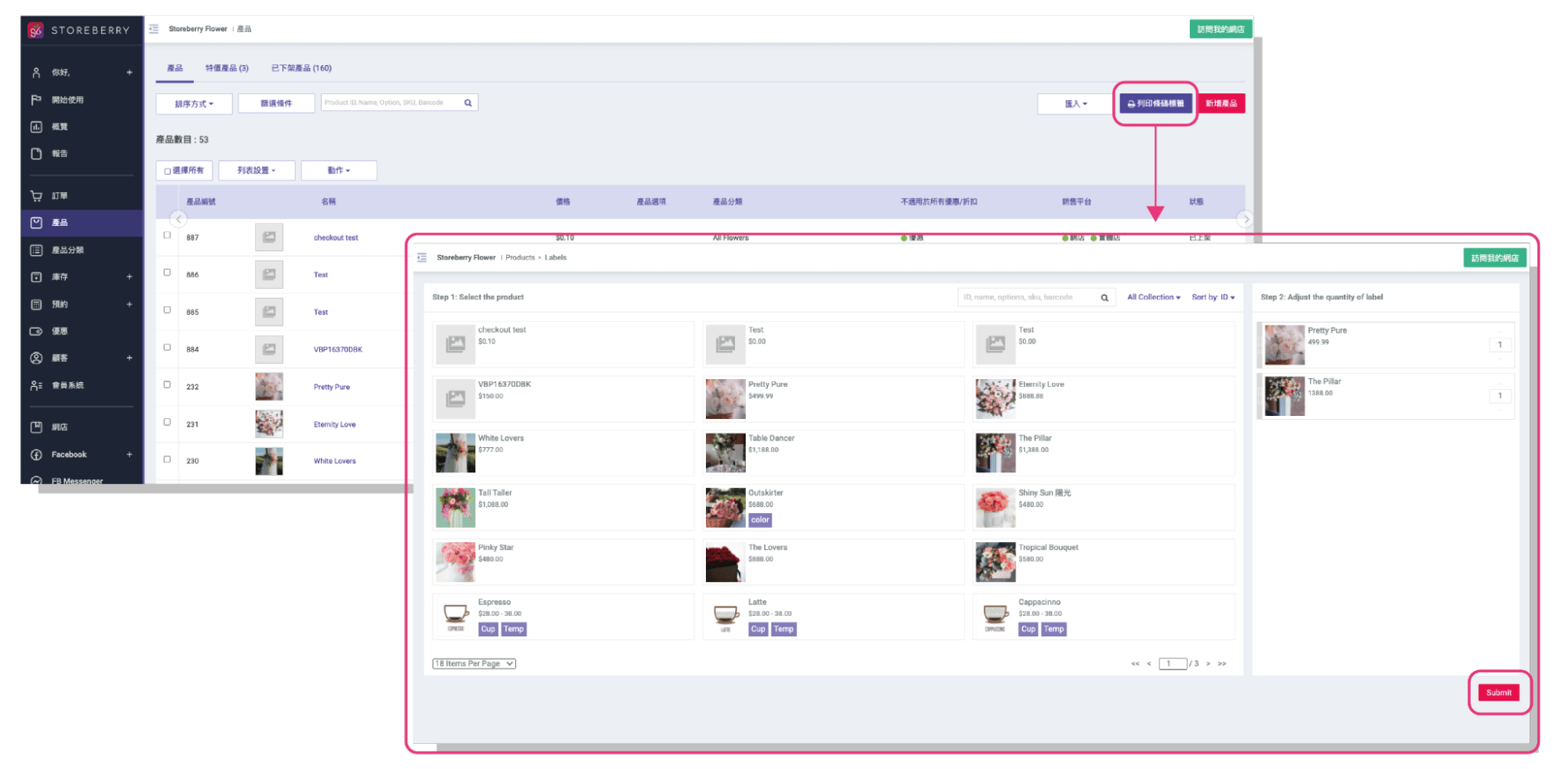

2） After entering the barcode number / QR code SKU for the product, you can go to Storeberry Admin Panel 「Products」 at the top right of the page and click 「Print label」 then select the product you want to print the barcode / QR code and enter the number of print. Then click 「Submit」 。

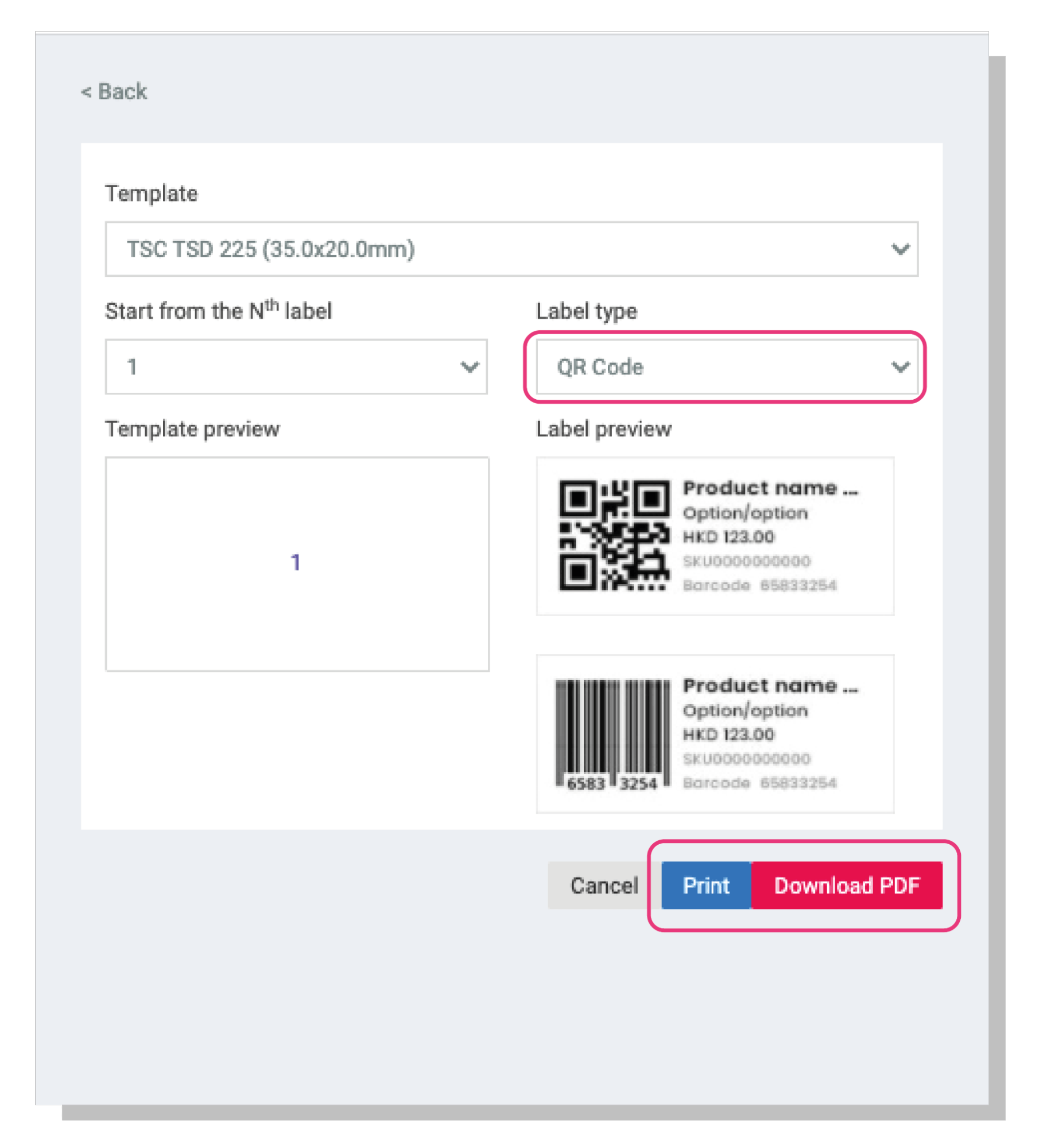

3）Select the label type, and click 「Print」 to print it out. You can also click 「Download PDF」 to archive the barcode / QR code.
